showPointOnCIExy
This script reads color coordinates from a file of format:
#desc Vl CIEx CIEy point1 98765 0.291 0.288 point2 98765 0.315 0.330

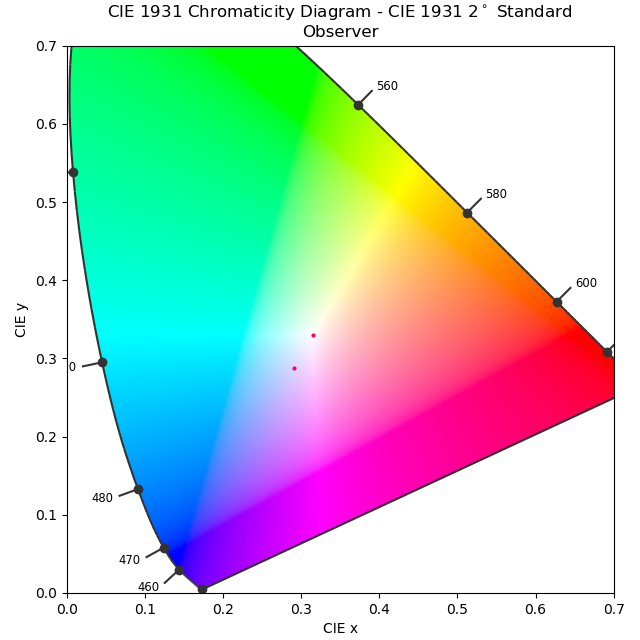

And indicates these position on the CIE color horse shoe.
""" Script to plot sets of color-points on top of CIE color horse shoe """ import matplotlib.pyplot as plt import numpy as np import os import colour.plotting as cplt import colour import readData2DictOfArrays as rd #==================================================# def pointOnCIE(x,y,color,legend): # https://scipython.com/blog/converting-a-spectrum-to-a-colour/ # http://markkness.net/colorpy/ColorPy.html fig,axis = cplt.chromaticity_diagram_plot_CIE1931(cmfs='CIE 1931 2 Degree Standard Observer', show_diagram_colours=True, use_cached_diagram_colours=True) axis.set_xlim(0,0.7) axis.set_ylim(0,0.7) for i in range(len(c)): axis.scatter(x[i],y[i], color=color[i], marker='.', linewidths=0, edgecolors='black') #fig.legend(legend) fig.savefig('myCIE.png') print('view myCIE.png') #==================================================# if __name__ == "__main__": """ myData.txt looks like: #desc Vl CIEx CIEy myDat 98765 0.291 0.288 """ x = [] y = [] c = [] l = [] filename = "myData.txt" data = rd.readData2DictOfArrays(filename,"\t") x.append(data['CIEx']) y.append(data['CIEy']) c.append(" #ff0066") l.append("my data") pointOnCIE(x,y,c,l)
